2W Livestock Equipment  |  SKU: W90003050-Dark Grey

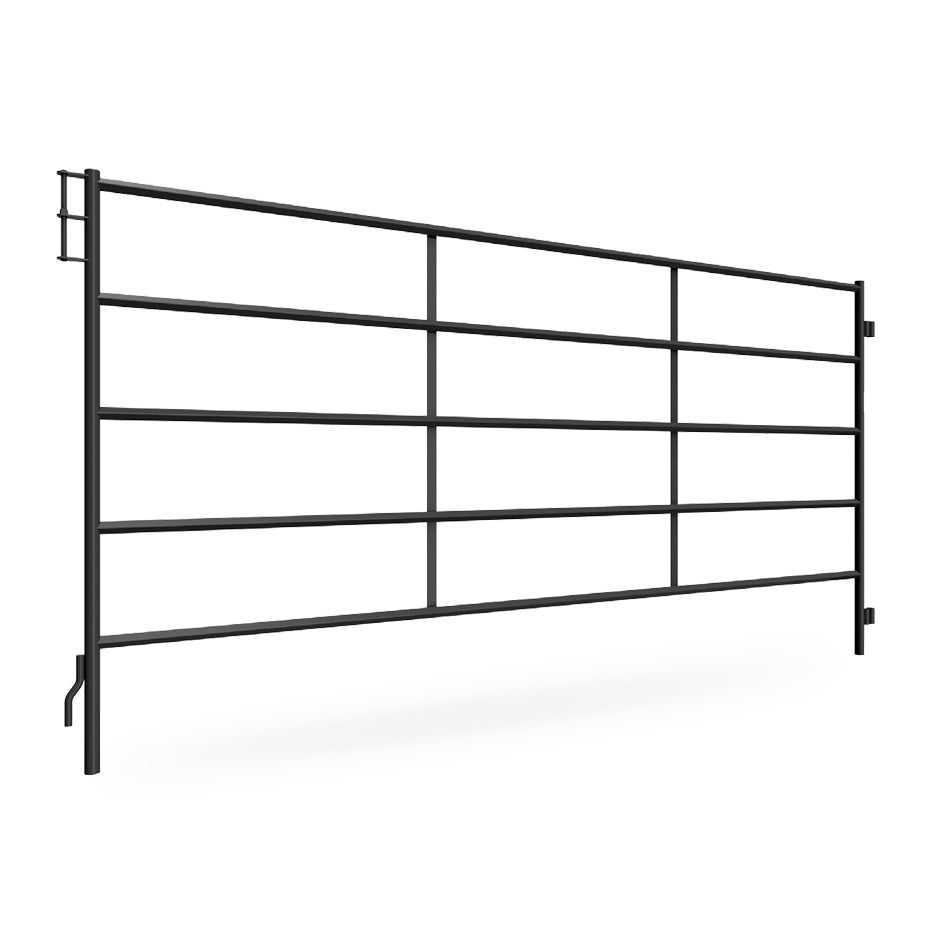

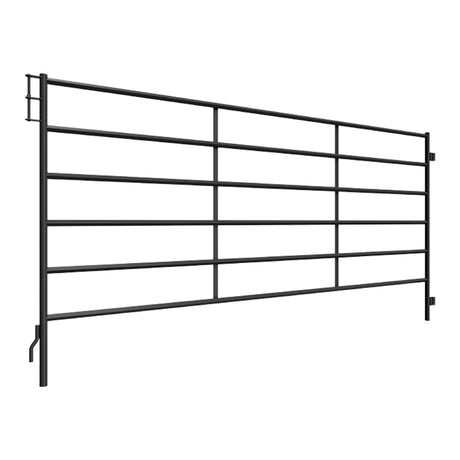

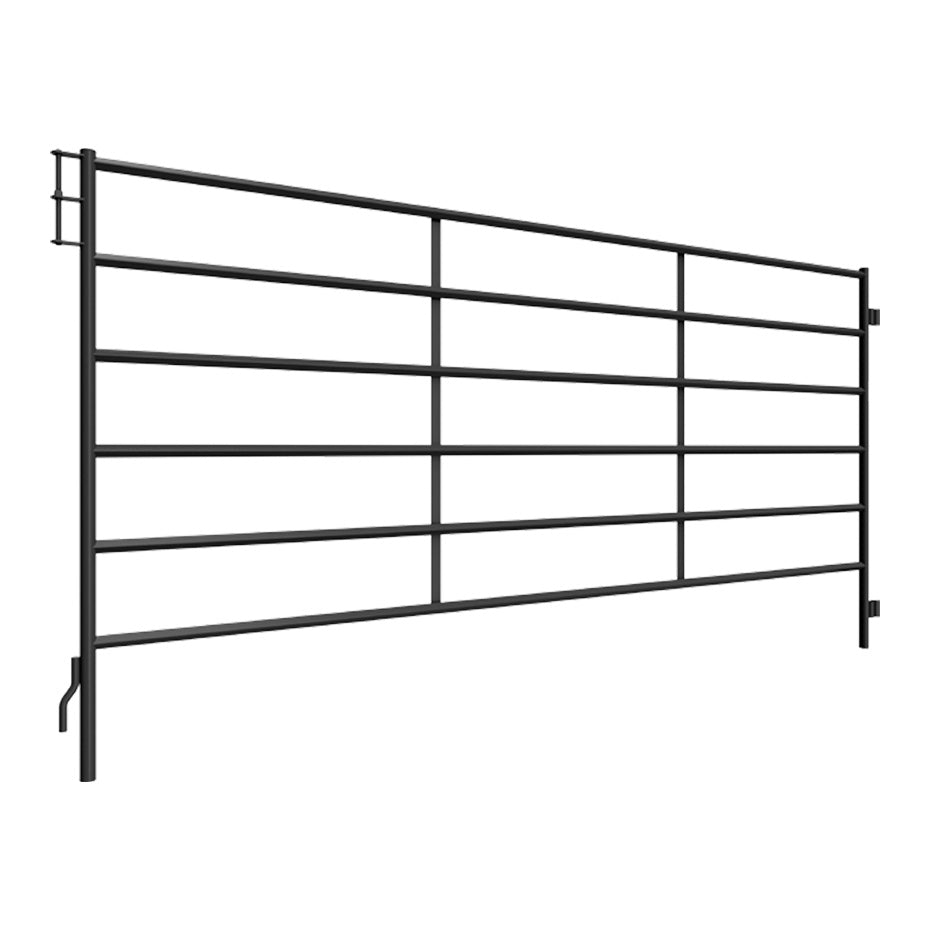

Diamond Ranch Series Light Duty Panels

$169.17

Please contact for availability on out of stock products.

Pickup & Delivery

All in-stock products available for local pickup in Southey, SK. Please contact for delivery options.

The 2W Diamond Ranch Series Light Duty Panels are a popular perimeter panel designed for low-pressure fencing and small portable pen applications. These panels are easy to transport and set up. Constructed from 1” x 1” square tubing cross rails and 3/16” thick flat bar center spokes.

Features

  • Robotic welded laser cut saddle seams
  • Portable & easy to set up
  • Consumer friendly price point
  • Post-less connecting & mounting system

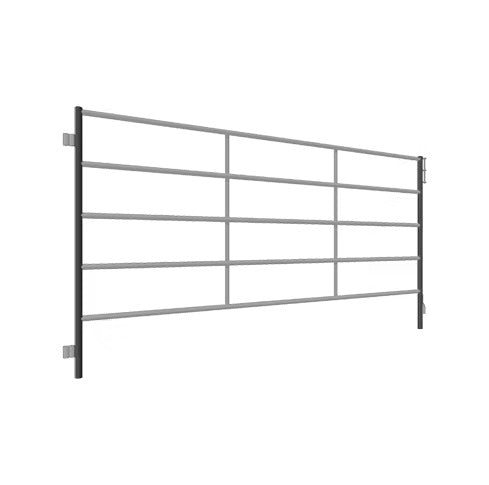

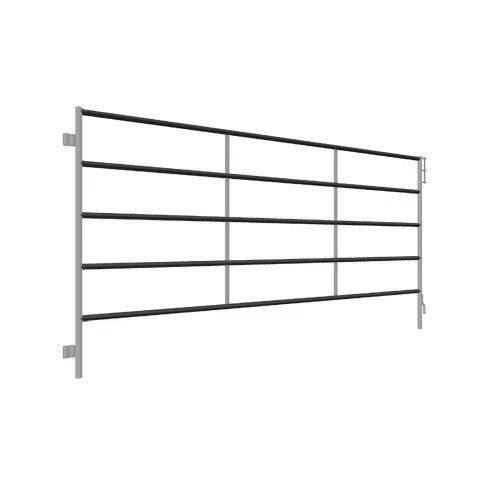

Square Tube Rail Construction

Unique to the Diamond Ranch Series, this product utilizes 1"x1" square tubing for its rails. This is where the "Diamond" in "Diamond Ranch" comes from! The square tubing is laser saddle cut for perfect fitment to the uprights.

High Strength Round Tube Uprights

Mated to the square tube rails, 1 1/2" - 14 gauge round steel uprights give the Diamond Ranch series an increased vertical strength.

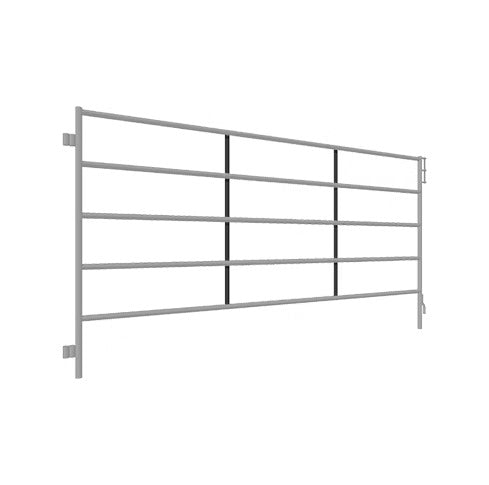

Thick Flat Bar Center Spoke Supports

1 1/2" thick flat bar is welded to the backs of the Diamond Ranch panels to act as center spokes. This method of vertical reinforcement both saves weight, cost, and boats similar vertical weight bearing as traditional center spokes.

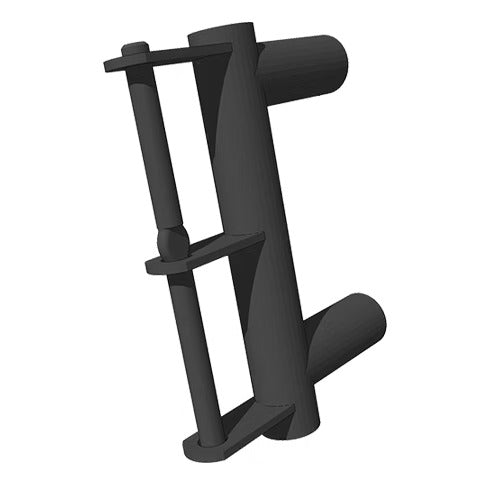

Diamond Ranch Series Post Pin Connecting System

Similar style to the Lemsco Series' post pin connecting system, the Diamond Ranch series panels use their own unique spacing to offer optimal cross-panel strength when mounted to one another.

Diamond Ranch Light Duty Series

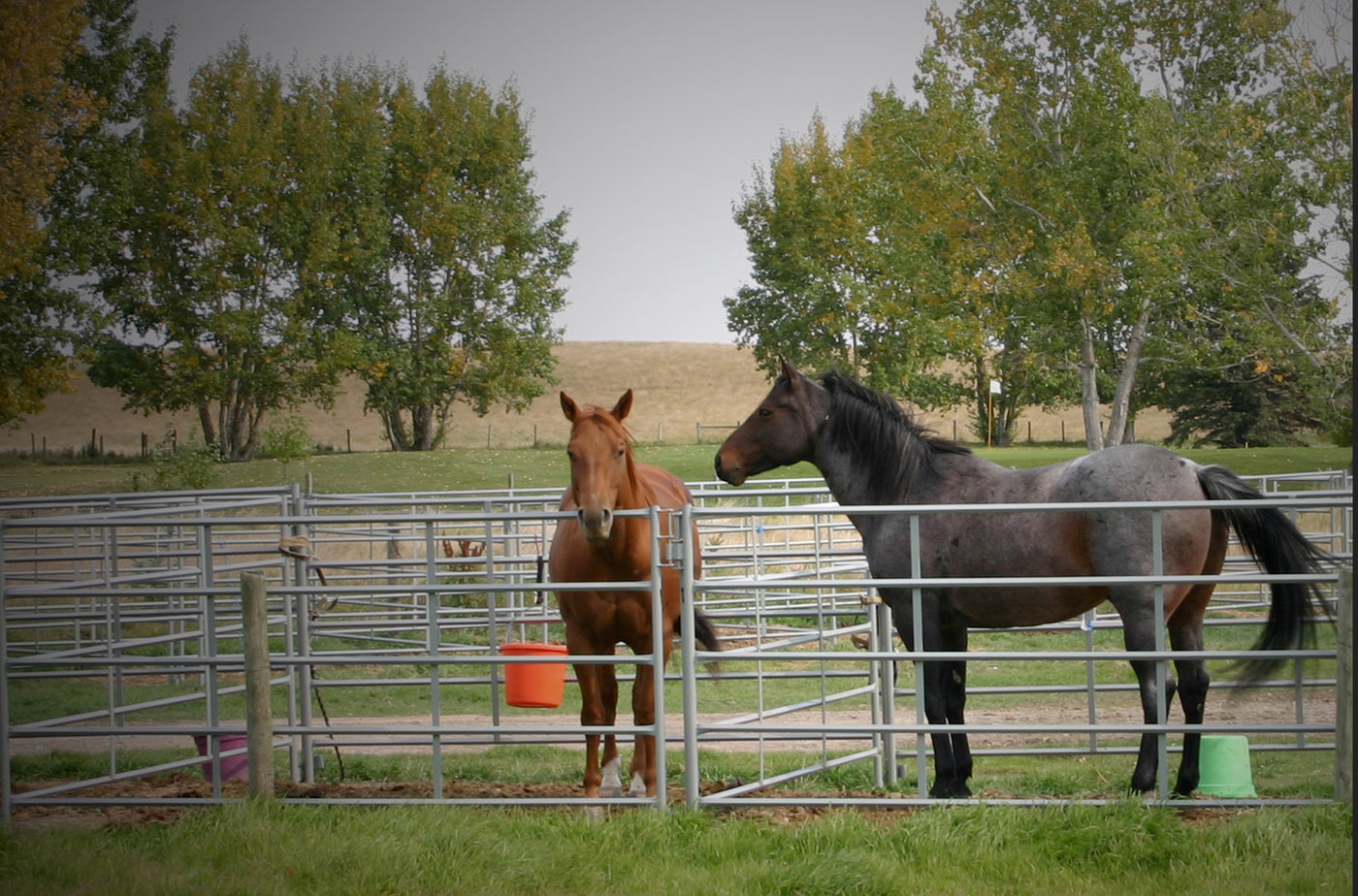

The Diamond Ranch Series offered by 2W is designed for low-stress livestock handling applications and portable pens. This series utilizes square tube rails angled vertically. The square tube is specially saddle laser cut to mate perfectly to the round tube uprights and then robotically welded around the seam. Being one of the most popular product series offered by 2W a Diamond Ranch Series product is carried by nearly every dealer, increasing availability for new and existing 2W patrons.
