2W Livestock Equipment | SKU: W90003100-Dark Grey

Corral Series Swing Gates

$336.32

Horse Back Latch

Height (ft)

Length (ft)

Product variants

Please contact for availability on out of stock products.

Contact for Availability

Enter your email or call (306) 570-7890 for availability on out of stock products.

Pickup & Delivery

All in-stock products available for local pickup in Southey, SK. Please contact for delivery options.

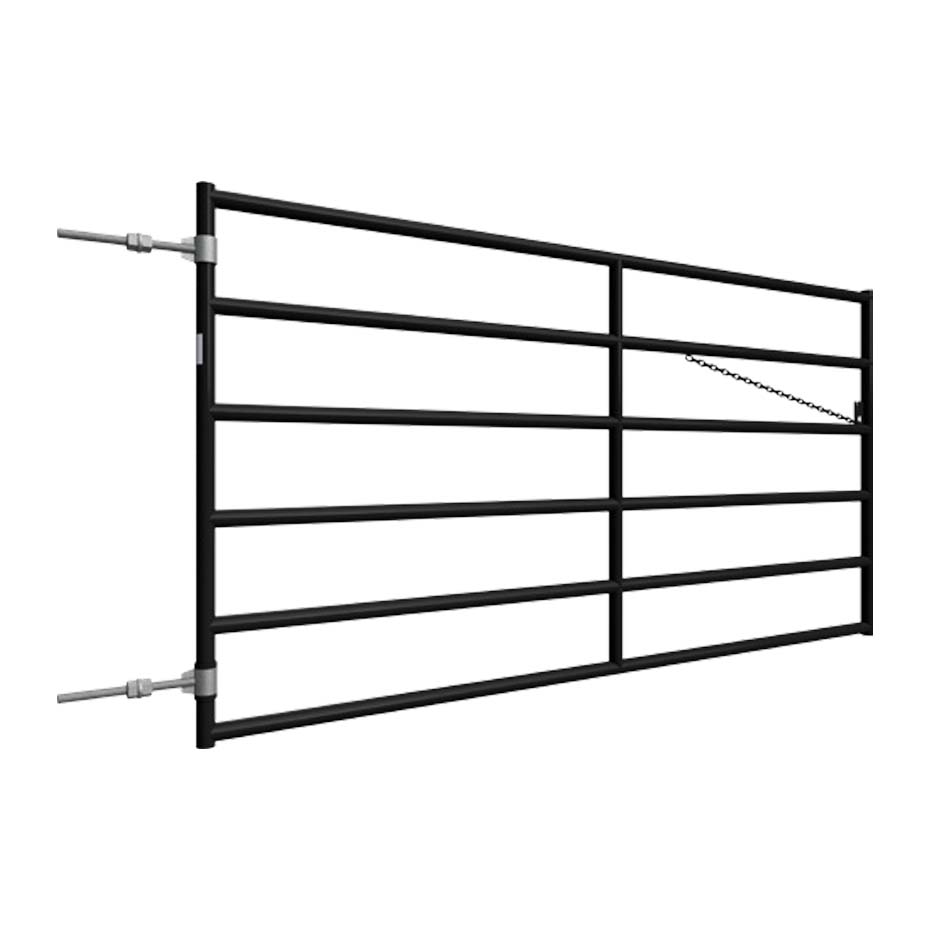

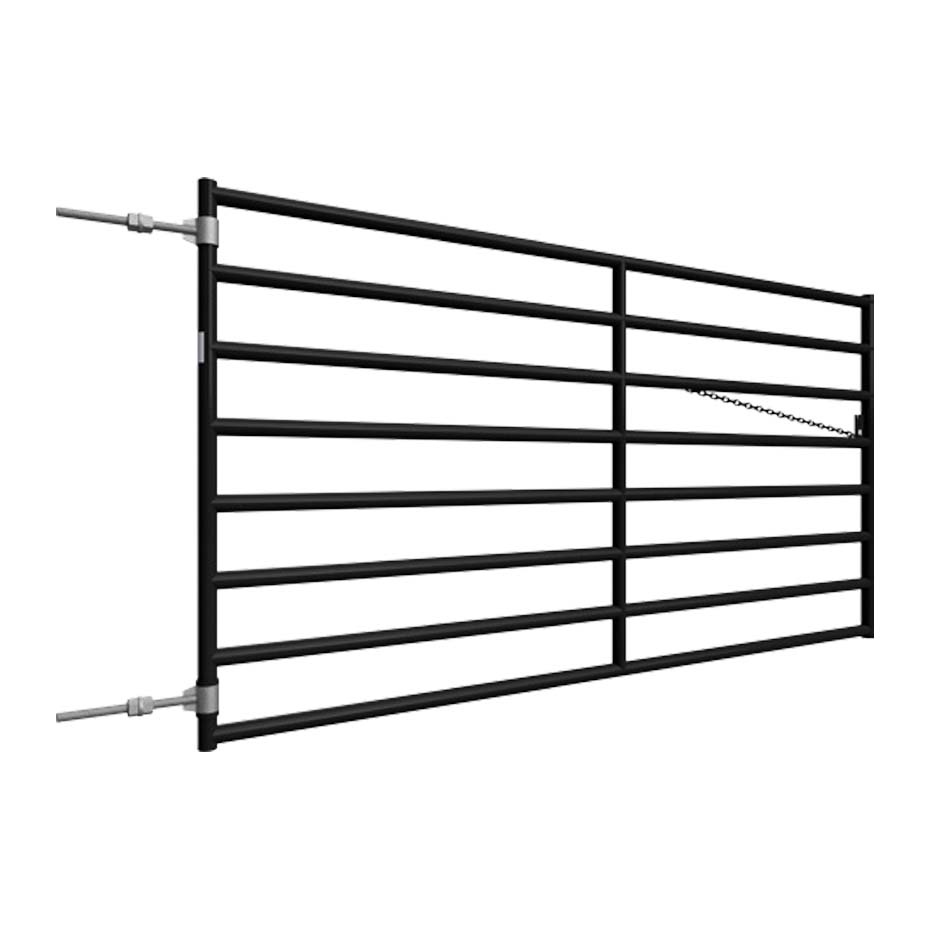

The 2W Corral Series Heavy Duty Swing Gates are ideal for entry into high pressure corral systems and high pressure perimeter gate applications. The gate hinge’s threaded rods are 1” diameter and 12” long allowing adjustability in gate width. It is recommended to drill 11/8” diameter holes to install. Available with either chain latch, or horse back latch options.

Height

48 in
48 in
-
48 in
48 in
48 in
186.38 in
60 in
60 in
60 in
60 in
60 in
60 in
60 in
71 in
71 in
71 in
71 in
71 in
48 in
48 in
48 in
48 in
48 in
48 in
48 in
60 in
60 in
60 in
60 in
60 in
60 in
60 in
71 in
71 in
71 in
71 in
71 in
71 in
71 in
Length

42.38 in
66.38 in
-
114.38 in
138.38 in
162.38 in
186.38 in
42.38 in
66.38 in
90.38 in
114.38 in
138.38 in
159.38 in
186.38 in
42.38 in
66.38 in
114.38 mm
138.38 in
186.38 in
42.38 in
66.38 in
90.38 in
114.38 in
138.38 in
162.38 in
186.38 in
42.38 in
66.38 in
90.38 in
114.38 in
138.38 in
159.38 mm
186.38 in
42.38 in
66.38 in
90.38 in
114.38 in
138.38 in
162.38 in
186.38 in
Weight

59.58 lb
79.27 lb
-
124.49 lb
142.13 lb
171.49 lb
189.11 lb
70.18 lb
93.03 lb
124.59 lb
146.09 lb
170.91 lb
202.57 lb
225.73 lb
80.13 lb
107.22 lb
171.07 lb
207.79 lb
261.97 lb
59.58 lb
79.27 lb
105.19 lb
124.49 lb
142.13 lb
171.49 lb
189.11 lb
70.18 lb
93.03 lb
124.59 lb
146.09 lb
170.91 lb
202.57 lb
225.73 lb
80.13 lb
107.22 lb
143.96 lb
171.07 lb
207.79 lb
234.9 lb
261.97 lb

Features

ROBOTIC WELDED LASER CUT SADDLE SEAMS
AVAILABLE IN 4’,5’,6’ UNMOUNTED HEIGHTS
HEAVY DUTY GALVANIZED, GREASEABLE GATE HINGES
AVAILABLE WITH CHOICE IN CHAIN LATCH OR HORSE BACK LATCH OPENING OPTIONS

400, 500, 600 Series Gate Sizes Available

The "400, 500, 600" Series Corral Gates are available in different rail and height configurations. Options include:

400 Series - 5 Rail - 4' Tall
500 Series - 6 Rail - 5' Tall
500 Series - 8 Rail - 5' Tall
600 Series - 7 Rail - 6' Tall

Heavy Duty Gate Hinges

This product utilizes heavy duty galvanized gate hinges that fit overtop of the upright, secured between the rails. Grease zerks are incorporated to aid with the hinge's functionality and longevity. The gate hinge’s threaded rods are 1” diameter and allow for adjustability in gate width. It is recommended to drill 1-1/8” diameter holes to install.

Available with Chain or H.B. Latch

This product is available with two opening options. A horse back latch lever offers easy opening/closing action. This lever increases leverage against the plunger, which in-turn allows for a high tension plunger to be opened. Alternatively a simple chain and chain latch option is also available.

CNC Robotic Welded Seams

Though 2W does still utilize hand welders for large assemblies, the incorporation of CNC Robotic Welders for high-volume products allows for maximum consistency between welds and aids with quality control measures. To add an extra layer of quality measures, these robotic welders use an Advanced Fronius CMT (Cold Metal Transfer) welding process that greatly reduces metal distortion, minimizes tension caused by heat expansion, nearly eliminates weld spatter, and makes for a beautiful high quality weld.

Corral Heavy Duty Series

The Corral Series offered by 2W is the leader in high stress cattle handling equipment offering the largest diameter and most wall thickness in the industry. This series is constructed primarily out of both round and oval 13 Gauge - 2” Diameter and round 10 Gauge - 23/8” diameter steel tube. Connecting posts that utilized a simple pin and clip system required to assemble this series. This series is commonly be referred to as “Corral Build Blocks” because panels and gates of the same length can be interchanged with ease. This series is commonly used in Rodeo Arenas as well.

2W’s Corral System Design Engineers are available free of charge for any customer considering upgrading or installing a new system. The 2W Corral Series is powdercoated in 2W Dark Gray and 2W Red.
