2W Livestock Equipment  |  SKU: W90003173-Dark Grey

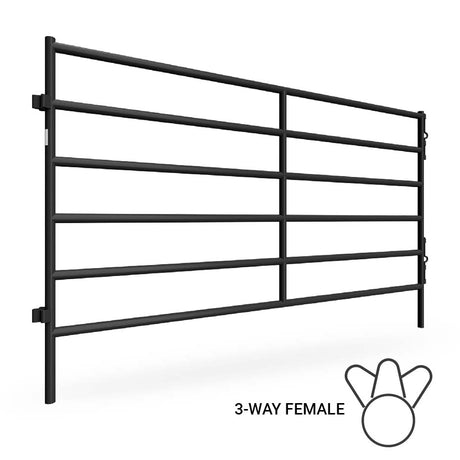

Corral Series Heavy Duty Panels

$286.12

Please contact for availability on out of stock products.

Pickup & Delivery

All in-stock products available for local pickup in Southey, SK. Please contact for delivery options.

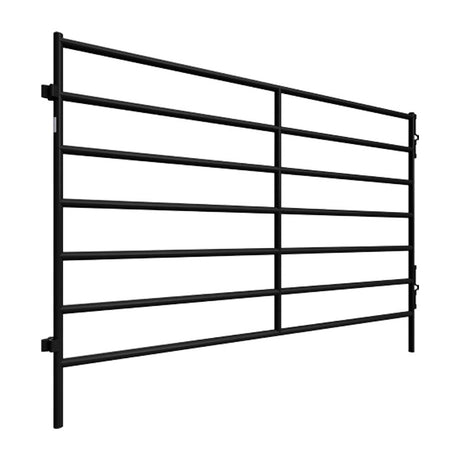

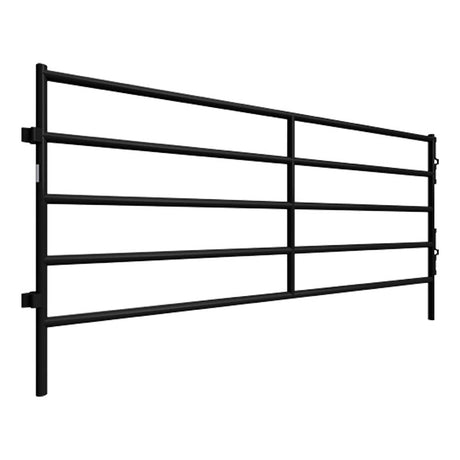

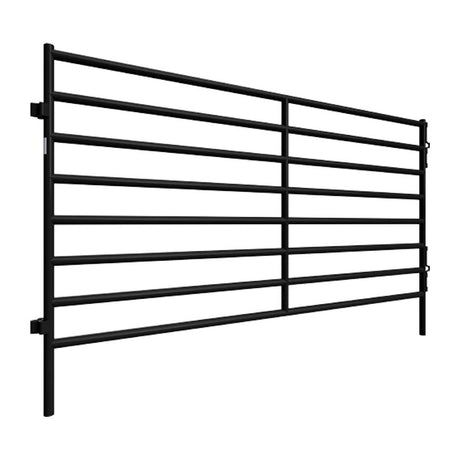

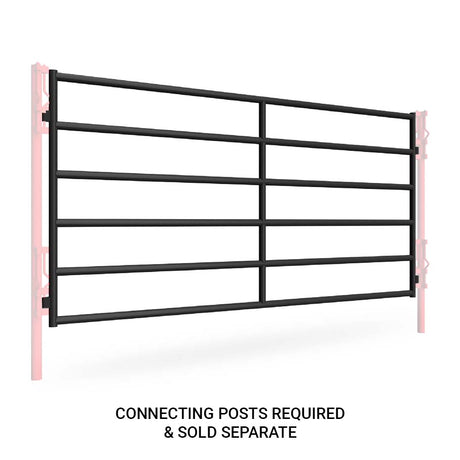

The 2W Corral Series Heavy Duty Panels are ideal for use in high pressure corral systems, high pressure pens, and handling areas. SAME HEIGHT HEAVY DUTY CONNECTING POSTS ARE REQUIRED to connect different height Corral products together. This connecting system uses an assortment of clips and post pins to connect to one another.

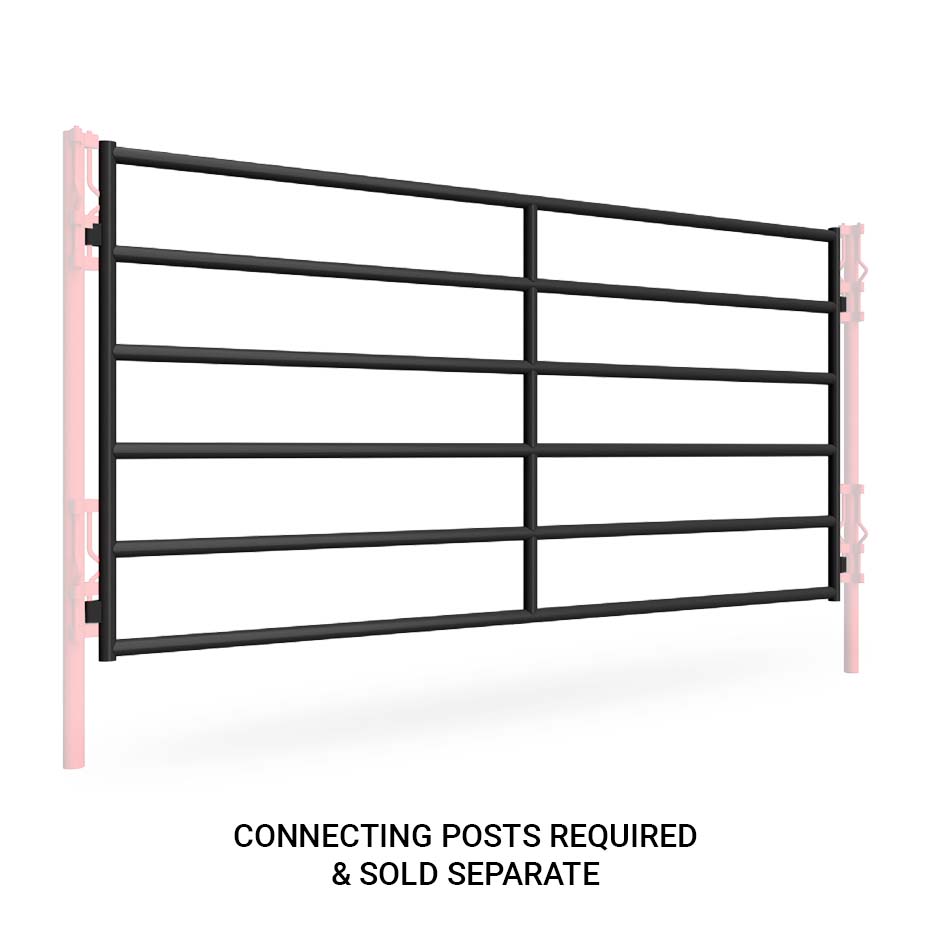

CONNECTING POSTS REQUIRED & SOLD SEPARATE

Features

  • ROBOTIC WELDED LASER CUT SADDLE SEAMS
  • AVAILABLE IN 4’,5’,6’ UNMOUNTED HEIGHTS
  • IDEAL FOR HEAVY DUTY CATTLE HANDLING OPERATION
  • FEMALE 400, 500, 600 HOOKUPS
  • REQUIRES APPROPRIATE SERIES POSTS. POSTS NOT INCLUDED, SOLD SEPARATE

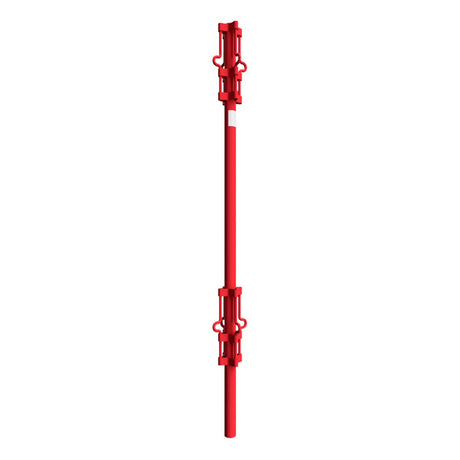

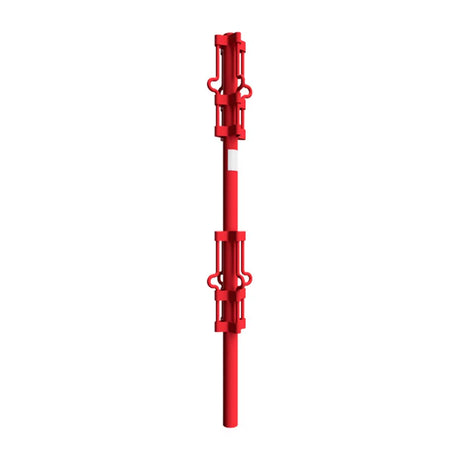

Heavy-Duty Connecting Posts

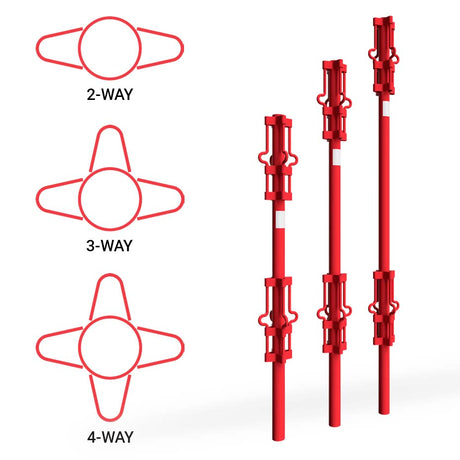

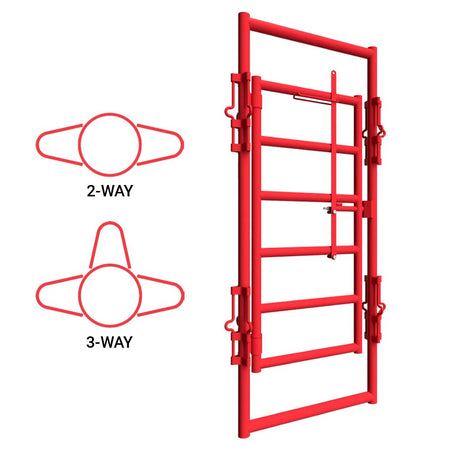

This product utilizes heavy duty connecting posts that come in 2-way, 3-way, and 4-way configurations allowing for the creation of pens and complex corral systems. These connecting posts are used throughout all of 2W's Heavy-Duty series products allowing for same-series interchangeability. Both male and female "Post Pin" configurations are available.

***2W "400, 500, 600" Series Connecting Posts are sold separate.

Post Pin Style Connecting System

All 2W Heady-Duty products utilize the 2W "Post Pin" connecting system. This system uses a shaped steel rod paired with shaped clips to fasten posts to panels. This systems allows for minute play so as to aid with odd fitment or change in terrain while at the same time ensuring that once the connection is made, it will never separate due to cattle pressure.

Laser Cut Steel Tube

2W utilizes Fiber Laser Technology to precision saddle cut high quality steel tube. The built-in software calculates the saddle cut ensuring a perfect fit when placed into the robotic welding fixture. This saddle cut provides vastly increased assembly strength over traditional “Pinch & Weld” style panels, whilst maintaining similar pricing for the end customer. In short, 2W patrons receive a higher durability product for the same price.

CNC Robotic Welded Seams

Though 2W does still utilize hand welders for large assemblies, the incorporation of CNC Robotic Welders for high-volume products allows for maximum consistency between welds and aids with quality control measures. To add an extra layer of quality measures, these robotic welders use an Advanced Fronius CMT (Cold Metal Transfer) welding process that greatly reduces metal distortion, minimizes tension caused by heat expansion, nearly eliminates weld spatter, and makes for a beautiful high quality weld.

Corral Heavy Duty Series

The Corral Series offered by 2W is the leader in high stress cattle handling equipment offering the largest diameter and most wall thickness in the industry. This series is constructed primarily out of both round and oval 13 Gauge - 2” Diameter and round 10 Gauge - 23/8” diameter steel tube. Connecting posts that utilized a simple pin and clip system required to assemble this series. This series is commonly be referred to as “Corral Build Blocks” because panels and gates of the same length can be interchanged with ease. This series is commonly used in Rodeo Arenas as well.

2W’s Corral System Design Engineers are available free of charge for any customer considering upgrading or installing a new system. The 2W Corral Series is powdercoated in 2W Dark Gray and 2W Red.
